More Lessons from the Pipeline

Posted on Dec 23, 2021

Never stop learning. That’s an order! Or not. Do whatever you want–you’re not my kid. But the pipeline is always teaching. The pipeline is always showing us something if we are receptive to learning it. Not really. It can teach us and it can show us if we go seeking it.

Badges? We don’t need no stinkin badges!

That right there is a build badge. It’s the build for this very website. The one you’re seeing now. Yeah, that’s pretty. I know. I’m kind of a big deal. /s But I love gadgets like this. They can be very helpful. I already get email alerts when builds succeed or fail but there are other ways to check on the status. The build badge is a very fun one because you can have it in your README. Looks pro. I, truly neutral, have decided to just throw it here on this page. It’s very easy to generate, as well.

That’s all there is to it. You’ll have a URL there for an image but they’ll also prepare some Markdown for you. I’ve taken advantage of the latter and you can see its result here. If it’s showing as failing then I’m working on something (hopefully that’s the reason).

Timing is everything

By default this pipeline pops off manually or when we push to the repo. That’s fine except that Hugo doesn’t show articles in the future unless you build your site with hugo -F. But then those future posts are just always there. That’s not particularly useful. What is being accomplished here is the ability to work on posts to be released at a later date and then have them show up close to the day they should. The pipeline can be scheduled more aggressively but that seems silly. Nothing here is going to be time-sensitive, anyway.

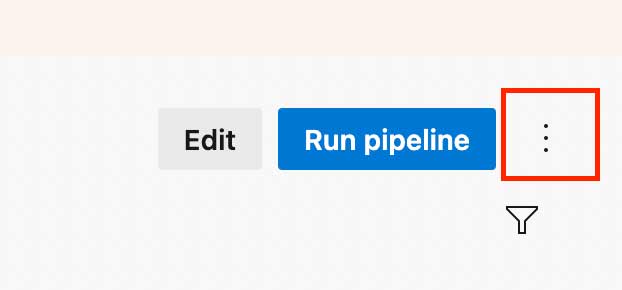

“The three dot menu on the top right of the page for a pipeline will have a menu item for “Status Badge” in a comically large image.”

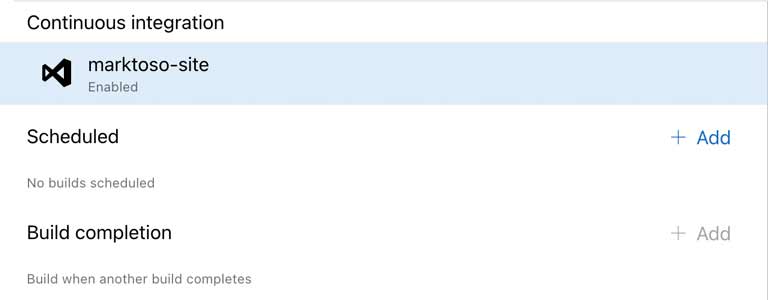

One arrives at the above screen by clicking the three-dot menu (and that, I just remembered, is called a kebab menu. I didn’t eat dinner–I’m hungry and this isn’t helping. The three line menu that, iirc, was popularized by Apple was, or is, called a burger menu) on the screen where you are able to edit the YAML of the pipeline directly. When you click “Add” next to “Scheduled” you’ll be presented with the below.

“This is the graphical pipeline scheduler. It is distinct from the scheduler in YAML and may cause some conflict if you’ve already gone into detail in your YAML.”

I decided this schedule would work because it’s a steady stream. I would very much like to still build when a push happens however the future post issue arises and I do quite wish for future posts to work. At the time that this post is up I would probably have not been near a computer to do a push. That info block down there at the bottom is particularly elucidating as it has now informed us that we can schedule through YAML. If this doesn’t seem interesting to you, well, you musn’t be afraid to dream a little bigger. It now becomes simple to programmatically adjust the scheduling on this pipeline. I’m not completely certain why I, personally, would want to do that but I’m sure there are reasons that someone would. I’ll get around to trying it out eventually.

Fill my builds with that Double Vision 🎸

If you recall from Branches? We Don’t Need No Stinking Branches, there is another feature branch. I don’t know that it’s fully worthwhile to get the build status of the feature branch as it will change. Right now it’s vale-info as I’m working on adding some information from the vale linter. Full post on that later.

Either way, I’ve been manually running that pipeline while I’ve been ironing out issues with the build system (and I assure you that most of my issues are self-inflicted and could have been ameliorated by running the build agent in a docker container or just using the one free worker that I get through Azure DevOps–both will eventually happen so be on the lookout for those) but those are mostly ironed out and I would like for that build to trigger on push.

State of the pipeline

Right now the pipeline is this:

trigger:
- main

stages:
  - stage: 'GenerateHugo'
    displayName: 'Generate hugo website'
    jobs:
      - job:
        pool:
          name: Default
          #vmImage: ubuntu-latest
        workspace:
          clean: all

        steps:
        - checkout: self
          displayName: 'Checkout repository including submodules'
          submodules: true  # true so Hugo theme submodule is checked out

        - task: Bash@3
          inputs:
            filePath: 'utilities/process-vale.sh'
        - task: CmdLine@2
          displayName: "Hugo build"
          condition: eq(variables['Build.SourceBranch'], 'refs/heads/main')
          #command line runs with --noprofile --norc and that's annoying
          inputs:
            script: '/home/vstsagent/.linuxbrew/bin/hugo --cleanDestinationDir --minify'

        - task: CmdLine@2
          displayName: "Hugo Staging Build"
          condition: ne(variables['Build.SourceBranch'], 'refs/heads/main')
          #command line runs with --noprofile --norc and that's annoying
          inputs:
            script: '/home/vstsagent/.linuxbrew/bin/hugo -D -F --cleanDestinationDir --minify --baseURL=https://STAGINGURL.azurestaticapps.net'

        - task: AzureStaticWebApp@0
          condition: eq(variables['Build.SourceBranch'], 'refs/heads/main')
          inputs:
            skip_app_build: true
            app_location: '/public'
            app_build_command: ''
            output_location: ''
            azure_static_web_apps_api_token: '$(TOKEN)'

        - task: AzureStaticWebApp@0
          condition: ne(variables['Build.SourceBranch'], 'refs/heads/main')
          inputs:
            skip_app_build: true
            app_location: '/public'
            app_build_command: ''
            output_location: ''
            azure_static_web_apps_api_token: '$(STAGING_TOKEN)'

The condition statements are what makes this work. The pipeline will undertake different action based on what branch it is running on which is very cool and useful. You’ll note that I build the website with hugo -D -F --baseURL=https://stagingurl to ensure that the links on the site direct to the appropriate address. It also builds draft posts and future posts (all about that scheduling).

Gotta build ’em all

Well, not all of them. But to build the branch vale-info your trigger section should have - vale-info. This is good for a specific branch however it doesn’t scale very well. There is a convention for feature branches that has them be named as feature/thefeaturename so that we can then add a trigger - feature/* to just cover those cases forever. It will look like this:

trigger:
- main
- vale-info
- feature/*

Happy building! 👷
